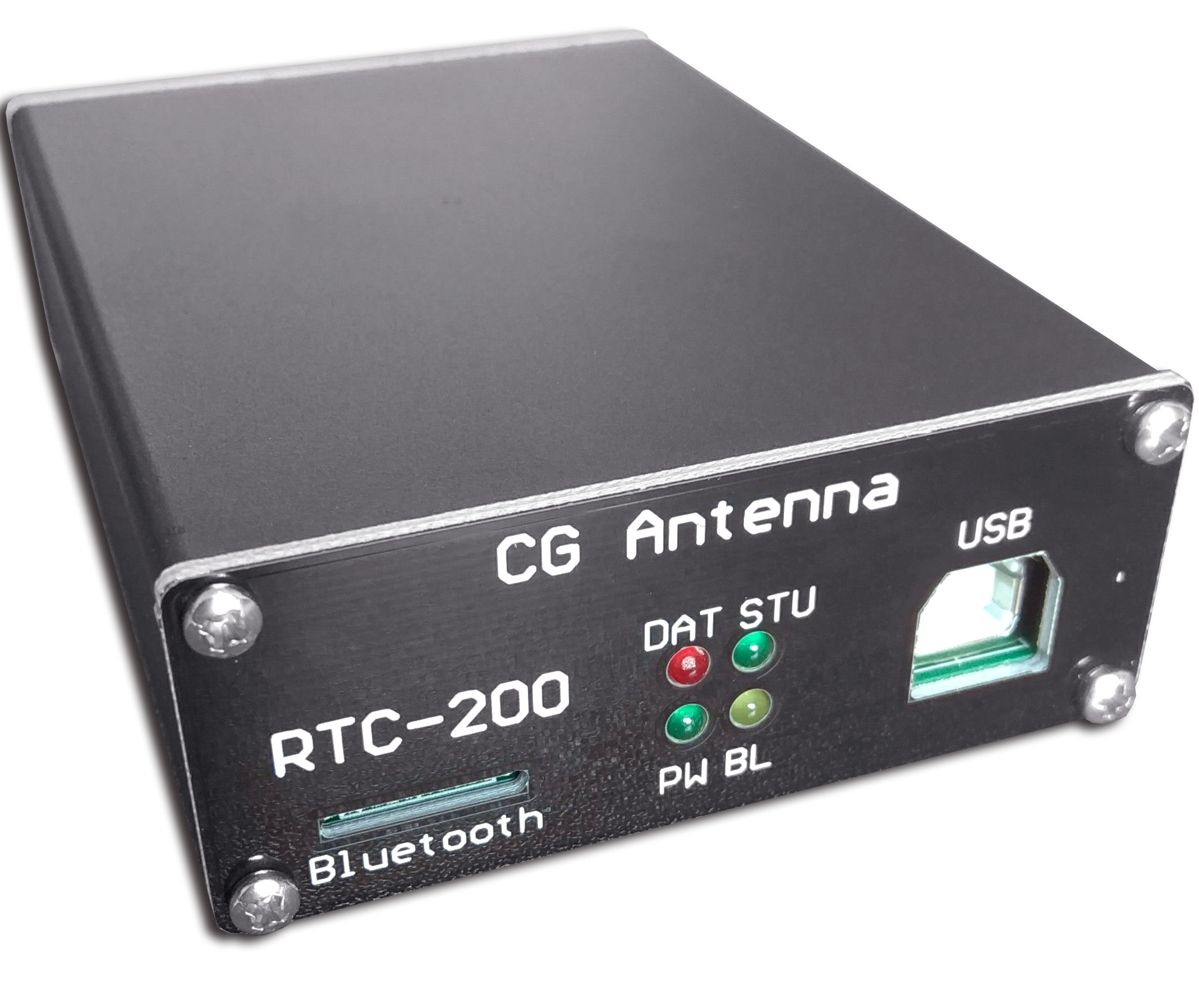

RTC-200 Yaesu Rotator Control Interface for YAESU antenna rotators

RTC-200 implements software control of various models of Yaesu antenna rotators from a personal computer via USB port or Bluetooth wireless.  It is compatible with Yaesu GS-232B interface protocol.

This interface is between computer and Yaesu rotator control unit. User could use rotator control software to control Yaesu rotator.

List of support Yaesu antenna rotator:

G-400, G-500, G-550, G-800, G-1000, G-2800, G-5400, G-5500, G-5600
Any rotator supports Yaesu GS-232B protocol.
Size:

74(W)x29(H)x102(D) mm
Weight:

170 g
Power:

8-15VDC, approx. 50mA
Computer port:

USB interface
Bluetooth(optional)

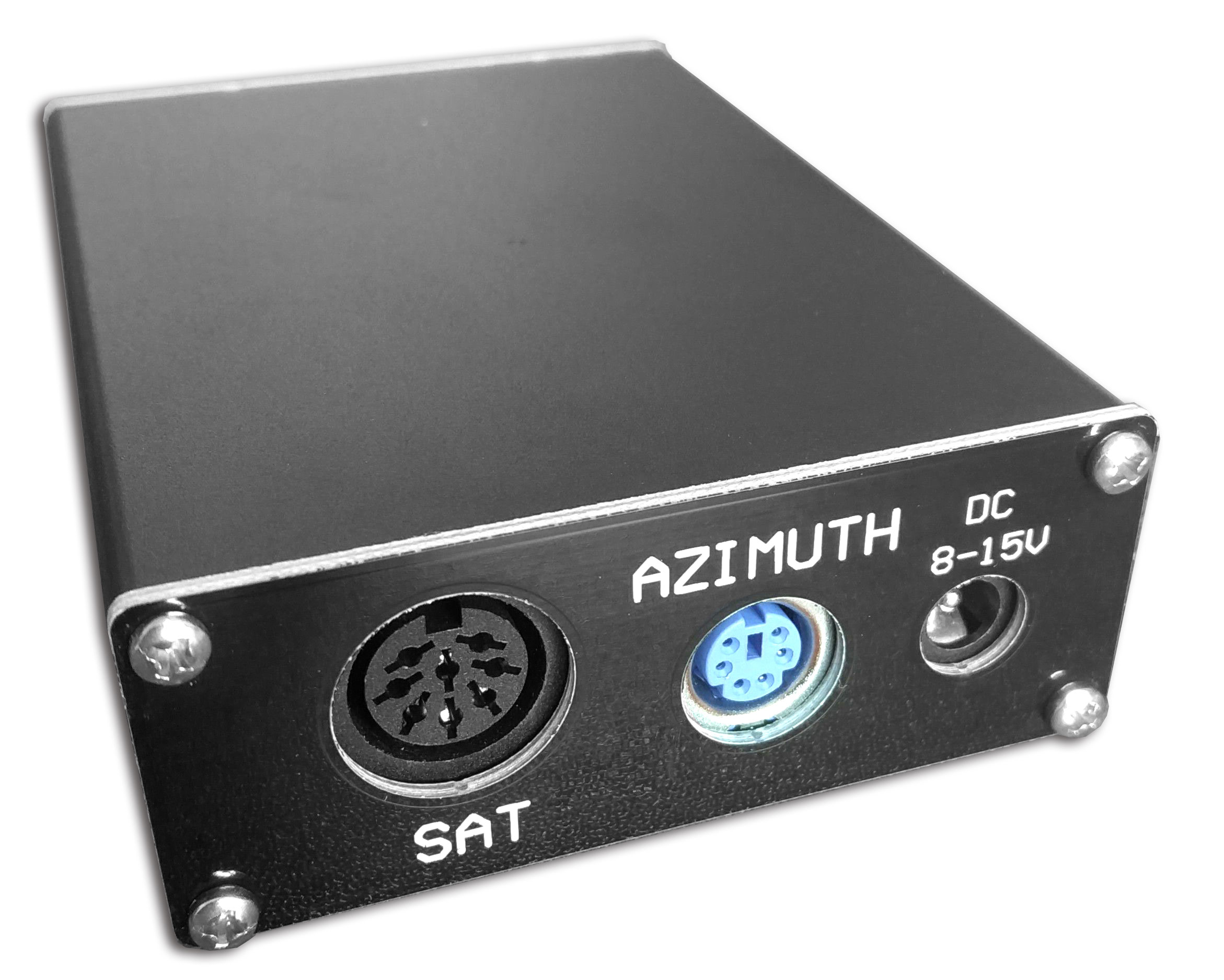

Rotator port:

MINI-DIN 6 (supplied cable for azimuth rotator)
DIN 8 (Optional cable for Azimuth and Elevation combined rotator)
Support command:

C, C2
O, F, O2, F2
L, R
UP, DN
S
X1, X2



RTC-200 user manual Link
RTC-200 client configuration software download. Link
